SKS EXTREME 05 type

Indexable tool for high feed machining

Combines sharpness and strength.
Well-balanced high feed machining is possible.

High feed machining tool with double side inserts.
Max ap=1.5mm.

Check and Download PDF files

Download DXF・STEP files

If you would like to download multiple catalogs,
you can do so from the list page below.

List of files

Line-up

※左右にフリックしてご覧いただけます。

Cat. No.	Type	Tool Diameter （ΦDc）
EXSKS-○○○○R-05-○○	Facemill type	Φ40～Φ63
EXSKS-○○○○-05-○○-S○○	Endmill type	Φ20～Φ32
MEX-05	Modular head type	Φ20~Φ40

Features of products

Both high feed machining and shoulder milling are possible by using same insert.

Small diameter
with multi-blade specification

Despite the small-diameter insert, high-efficiency,
high-feed machining with an axial
depth of cut of up to 1.5 mm is possible.

Double-side insert (6 corners). Due to multi blades specification, achieved high efficient machining.

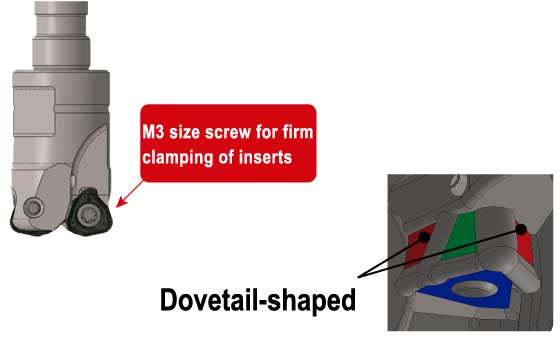

Strong insert clamps

Due to dovetail-shaped binding face,
movement of inserts
which occer by cutting force
is prevented only single screw clamping.
In addition, M3 screw for
firm clamping of inserts.
